Top Meshtastic Cases
These are our top 3D Printed cases for your Meshtastic Node. We highlight the pros and cons of each case making it easier for you to choose the right hardware and case.
We talked about Meshtastic in the other post What is Meshtastic? - Full Guide on How To Get Started. In today's post, we will go over the best Meshtastic case for your device.
Adrelien
T-Beam Supreme Tony G Case for Meshtastic
Case: https://www.printables.com/model/616635-t-beam-supreme-case-for-meshtastic
LILYGO Meshtastic T-Beam
Meet the T-Beam—your go-to for a feature-packed experience. It's got an ESP32 microcontroller, a LoRa radio module, an OLED display, and a GPS unit, plus a slot for an 18650 battery (not included). It is the go-to choice for most people who want to get started.
What's awesome? The price is nice, and with a case, you're all set. Just a heads up: watch out for the screen. Some versions come without it attached. Opt for the one with the screen already soldered, and you're good to go!
Renowned not only among T-Beam users but also prominent in the world of Meshtastic devices, this case is a standout. It boasts a rugged design, comprising three interlocking parts that require screwing together for assembly. Purpose-built to accommodate the T-Beam, it includes slots for the device's battery, charging port, and buttons, and offers various antenna orientations. Additionally, it features a screen opening and a convenient hook for attaching to bags. However, it's important to note that this case lacks waterproofing, and its water resistance may be questionable, so users should plan accordingly. Furthermore, assembly requires additional hardware not included in the 3D-printed parts, necessitating a trip to the store for supplies. With its multipart construction, users have the flexibility to mix and match colors, allowing for further customization and personalization.
Pros:
- Rugged Case
- Many Antenna Orientation
- Screen Window
- Ring To Hook
- Muti-Parts / Mixing Colors
- Battery Supported
Cons:
- Complicated To Assemble
- Require Extra Hardware
- Not Waterproof

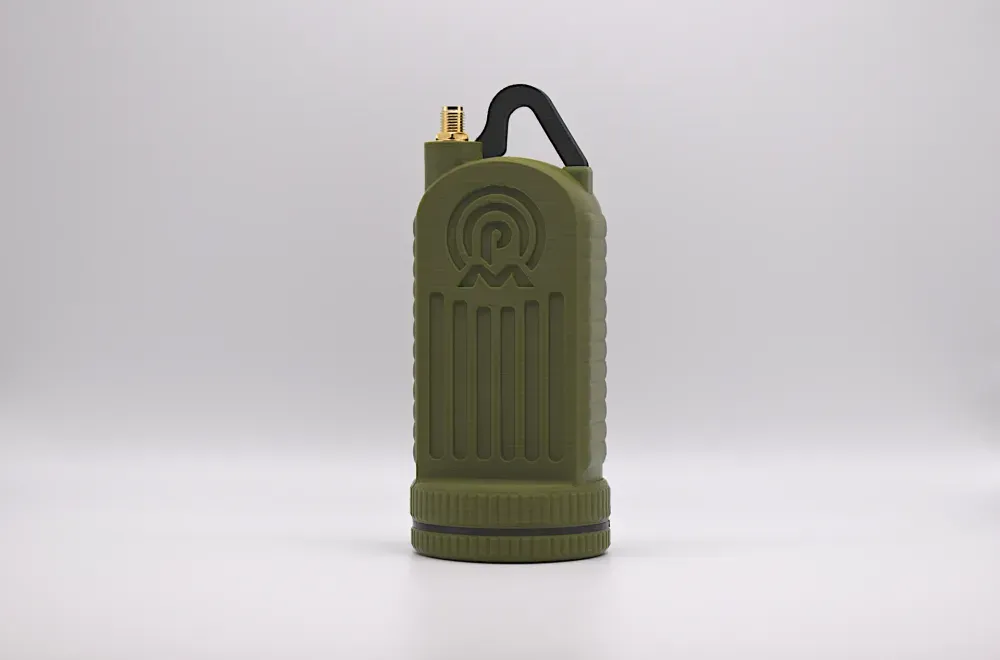

PocketMesh R2 case for Meshtastic (RAK19007)
Case: https://www.printables.com/model/712598-pocketmesh-r2-case-for-meshtastic-rak19007
WisBlock Meshtastic Starter Kit
Enter the WisBlock Meshtastic Starter Kit—built upon the versatile WisBlock modular platform by RAKwireless. This kit is the epitome of modularity and customization for Meshtastic applications. With WisBlock, you have the power to mix and match different modules, tailoring your setup to fit specific project needs.
An often overlooked gem among WisBlock cases, this fully waterproof enclosure features a secure screw-on cap. With a top-oriented antenna and a convenient hook for attaching to your bag, it's perfect for outdoor handheld use. However, it's important to note that this case doesn't include a screen or button access, typical of waterproof designs prioritizing water resistance over additional features. Available in various sizes, including the standard XL and Small options, it offers versatility to accommodate different configurations. The case comprises two main parts: a sturdy frame for mounting devices and modules, which then slides into the protective cover before sealing with the screw-on cap to ensure waterproof integrity.
Pros:
- Rugged Case
- Easy To Assemble
- Waterproof
- Ring To Hook
- Battery Supported
Cons:
- No Screen Window
- No Many Antenna Orientation
- Require Extra Hardware But Not Much
- Require Different Fliemnts Types
- No Multi-Parts / Mixing Colors
H1 - Case for Heltec V3 running Meshtastic
Case: https://www.printables.com/model/741974-h1-case-for-heltec-v3-running-meshtastic
Heltec v3 LoRa
Heltec brings simplicity and affordability to the forefront with its compact LoRa modules featuring built-in OLED displays—enter the Heltec Lora v3. Striking a perfect balance between price and features, it stands out as an excellent choice for Meshtastic enthusiasts on a budget.
Priced competitively, it's a wallet-friendly option that doesn't compromise on performance. The absence of GPS, coupled with the ESP32 and BT 4.2, makes it an attractive device for those eager to explore Meshtastic without a hefty investment.
However, it's essential to note that while the Heltec Lora v3 is a cost-effective entry point, Heltec doesn't offer a straightforward path for easy upgradability or customizability. But if you're comfortable using your phone's GPS and are looking for an affordable way to dive into Meshtastic, the Heltec Lora v3 is a solid contender that won't break the bank.
The H1 stands out as our top choice for the Heltec case. Its design is both straightforward to print and assemble, boasting a convenient screen opening with accessible buttons. With room for a battery and a neatly integrated antenna, it offers a compact solution. However, it's worth noting that the low-profile antenna placement might pose clearance issues for some antennas. Additionally, its inclusion of a ring makes it easy to attach to a bag or belt, enhancing its portability and convenience. The H1, being a multi-part print, opens up exciting opportunities for customization, particularly in choosing colors. Its modular design allows for personalization, enabling users to mix and match colors to suit their preferences or style. With this flexibility, you can create a truly unique look for your device, making it not only functional but also aesthetically pleasing.
Pros:
- Rugged & Small Case
- Easy To Assemble
- Screen Window
- Ring To Hook
- Muti-Parts / Mixing Colors
- Battery Supported
Cons:
- Not Many Antenna Orientation
- Very Limit Antenna Support
- Require Extra Hardware But Little
- Not Waterproof
Honorable Mention
Meshtastic with MagSafe
Case: https://www.printables.com/model/806280-meshtastic-with-magsafe
Heltec v3 LoRa
Heltec brings simplicity and affordability to the forefront with its compact LoRa modules featuring built-in OLED displays—enter the Heltec Lora v3. Striking a perfect balance between price and features, it stands out as an excellent choice for Meshtastic enthusiasts on a budget.
Priced competitively, it's a wallet-friendly option that doesn't compromise on performance. The absence of GPS, coupled with the ESP32 and BT 4.2, makes it an attractive device for those eager to explore Meshtastic without a hefty investment.
However, it's essential to note that while the Heltec Lora v3 is a cost-effective entry point, Heltec doesn't offer a straightforward path for easy upgradability or customizability. But if you're comfortable using your phone's GPS and are looking for an affordable way to dive into Meshtastic, the Heltec Lora v3 is a solid contender that won't break the bank.
This case stands out for its innovative form factor, prioritizing convenience over ruggedness or waterproofing. However, its clever design, featuring MagSafe integration and a dedicated space for the battery, makes it an ideal solution for individuals seeking to carry a Meshtastic node with them at all times without the hassle of additional bulk. While it may add some thickness to your phone, the trade-off is having a fully functional Meshtastic node seamlessly integrated with your device. It's important to clarify that the MagSafe feature doesn't provide charging capabilities for either the node or your phone; its sole purpose is to securely attach the node to your iPhone.
Pros:
- MagSafe Small Case
- Easy To Assemble
- Screen Window
- Battery Supported
Cons:
- No Muti-Parts / Mixing Colors
- Require Extra Hardware But Little
- Not Waterproof
Adrelien
We'd love to hear about your decision! Drop a comment below to let us know which case you've chosen or if you have any questions. Your feedback is important to us, and we're here to assist in any way we can. Happy exploring!
